Portable abstraction of hierarchical architectures for high-performance computing
Introduction
hwloc provides command line tools and a C API to obtain the hierarchical map of key computing elements, such as: NUMA memory nodes, shared caches, processor sockets, processor cores, processing units (logical processors or "threads") and even I/O devices. hwloc also gathers various attributes such as cache and memory information, and is portable across a variety of different operating systems and platforms. Additionally it may assemble the topologies of multiple machines into a single one so as to let applications consult the topology of an entire fabric or cluster at once.
hwloc primarily aims at helping high-performance computing (HPC) applications, but is also applicable to any project seeking to exploit code and/or data locality on modern computing platforms.
Note that the hwloc project represents the merger of the libtopology project from inria and the Portable Linux Processor Affinity (PLPA) sub-project from Open MPI. Both of these prior projects are now deprecated. The first hwloc release was essentially a "re-branding" of the libtopology code base, but with both a few genuinely new features and a few PLPA-like features added in. Prior releases of hwloc included documentation about switching from PLPA to hwloc; this documentation has been dropped on the assumption that everyone who was using PLPA has already switched to hwloc.
hwloc supports the following operating systems:
-
Linux (including old kernels not having sysfs topology information, with knowledge of cpusets, offline CPUs, ScaleMP vSMP, NumaScale NumaConnect, and Kerrighed support)
-
Solaris
-
AIX
-
Darwin / OS X
-
FreeBSD and its variants (such as kFreeBSD/GNU)
-
NetBSD
-
OSF/1 (a.k.a., Tru64)
-
HP-UX
-
Microsoft Windows
-
IBM BlueGene/Q Compute Node Kernel (CNK)
Since it uses standard Operating System information, hwloc's support is mostly independant from the processor type (x86, powerpc, ...) and just relies on the Operating System support. The only exception to this is kFreeBSD, which does not support topology information, and hwloc thus uses an x86-only CPUID-based backend (which can be used for other OSes too, see the Components and plugins section).
To check whether hwloc works on a particular machine, just try to build it and run lstopo or lstopo-no-graphics. If some things do not look right (e.g. bogus or missing cache information), see Questions and Bugs below.
hwloc only reports the number of processors on unsupported operating systems; no topology information is available.
For development and debugging purposes, hwloc also offers the ability to work on "fake" topologies:
-
Symmetrical tree of resources generated from a list of level arities
-
Remote machine simulation through the gathering of Linux sysfs topology files
hwloc can display the topology in a human-readable format, either in graphical mode (X11), or by exporting in one of several different formats, including: plain text, PDF, PNG, and FIG (see CLI Examples below). Note that some of the export formats require additional support libraries.
hwloc offers a programming interface for manipulating topologies and objects. It also brings a powerful CPU bitmap API that is used to describe topology objects location on physical/logical processors. See the Programming Interface below. It may also be used to binding applications onto certain cores or memory nodes. Several utility programs are also provided to ease command-line manipulation of topology objects, binding of processes, and so on.
Perl bindings are available from Bernd Kallies on CPAN.
Python bindings are available from Guy Streeter:
Installation
hwloc (https://www.open-mpi.org/projects/hwloc/) is available under the BSD license. It is hosted as a sub-project of the overall Open MPI project (https://www.open-mpi.org/). Note that hwloc does not require any functionality from Open MPI – it is a wholly separate (and much smaller!) project and code base. It just happens to be hosted as part of the overall Open MPI project.
Nightly development snapshots are available on the web site. Additionally, the code can be directly cloned from Git:
shell$ git clone https://github.com/open-mpi/hwloc.git
shell$ cd hwloc
shell$ ./autogen.sh
Note that GNU Autoconf >=2.63, Automake >=1.10 and Libtool >=2.2.6 are required when building from a Git clone.
Installation by itself is the fairly common GNU-based process:
shell$ ./configure --prefix=...
shell$ make
shell$ make install
The hwloc command-line tool "lstopo" produces human-readable topology maps, as mentioned above. It can also export maps to the "fig" file format. Support for PDF, Postscript, and PNG exporting is provided if the "Cairo" development package (usually cairo-devel or libcairo2-dev) can be found in "lstopo" when hwloc is configured and build.
The hwloc core may also benefit from the following development packages:
-
libnuma for memory binding and migration support on Linux (
numactl-devel or libnuma-dev package).
-
hwloc can use one of two different libraries for full I/O device discovery:
-
libpciaccess (BSD). The relevant development package is usually
libpciaccess-devel or libpciaccess-dev.
On Linux, PCI discovery may still be performed even if none of the above libraries can be used.
-
the AMD OpenCL implementation for OpenCL device discovery.
-
the NVIDIA CUDA Toolkit for CUDA device discovery.
-
the NVIDIA Tesla Development Kit for NVML device discovery.
-
the NV-CONTROL X extension library (NVCtrl) for NVIDIA display discovery.
-
libxml2 for full XML import/export support (otherwise, the internal minimalistic parser will only be able to import XML files that were exported by the same hwloc release). See Importing and exporting topologies from/to XML files for details. The relevant development package is usually
libxml2-devel or libxml2-dev.
-
libtool's ltdl library for dynamic plugin loading. The relevant development package is usually
libtool-ltdl-devel or libltdl-dev.
PCI and XML support may be statically built inside the main hwloc library, or as separate dynamically-loaded plugins (see the Components and plugins section).
Note that because of the possibility of GPL taint, the pciutils library libpci will not be used (remember that hwloc is BSD-licensed).
Also note that if you install supplemental libraries in non-standard locations, hwloc's configure script may not be able to find them without some help. You may need to specify additional CPPFLAGS, LDFLAGS, or PKG_CONFIG_PATH values on the configure command line.
For example, if libpciaccess was installed into /opt/pciaccess, hwloc's configure script may not find it be default. Try adding PKG_CONFIG_PATH to the ./configure command line, like this:
./configure PKG_CONFIG_PATH=/opt/pciaccess/lib/pkgconfig ...
CLI Examples

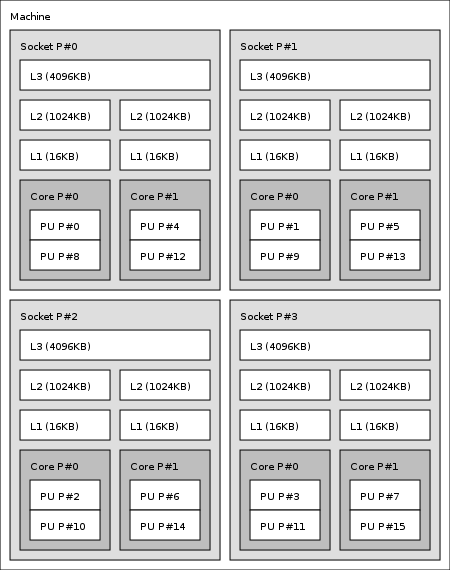

On a 4-socket 2-core machine with hyperthreading, the lstopo tool may show the following graphical output:
Here's the equivalent output in textual form:
Machine (16GB)
Socket L#0 + L3 L#0 (4096KB)
L2 L#0 (1024KB) + L1 L#0 (16KB) + Core L#0
PU L#0 (P#0)
PU L#1 (P#8)
L2 L#1 (1024KB) + L1 L#1 (16KB) + Core L#1
PU L#2 (P#4)
PU L#3 (P#12)
Socket L#1 + L3 L#1 (4096KB)
L2 L#2 (1024KB) + L1 L#2 (16KB) + Core L#2
PU L#4 (P#1)
PU L#5 (P#9)
L2 L#3 (1024KB) + L1 L#3 (16KB) + Core L#3
PU L#6 (P#5)
PU L#7 (P#13)
Socket L#2 + L3 L#2 (4096KB)
L2 L#4 (1024KB) + L1 L#4 (16KB) + Core L#4
PU L#8 (P#2)
PU L#9 (P#10)
L2 L#5 (1024KB) + L1 L#5 (16KB) + Core L#5
PU L#10 (P#6)
PU L#11 (P#14)
Socket L#3 + L3 L#3 (4096KB)
L2 L#6 (1024KB) + L1 L#6 (16KB) + Core L#6
PU L#12 (P#3)
PU L#13 (P#11)
L2 L#7 (1024KB) + L1 L#7 (16KB) + Core L#7
PU L#14 (P#7)
PU L#15 (P#15)
Finally, here's the equivalent output in XML. Long lines were artificially broken for document clarity (in the real output, each XML tag is on a single line), and only socket #0 is shown for brevity:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE topology SYSTEM "hwloc.dtd">
<topology>
<object type="Machine" os_index="0" cpuset="0x0000ffff"
complete_cpuset="0x0000ffff" online_cpuset="0x0000ffff"
allowed_cpuset="0x0000ffff"
dmi_board_vendor="Dell Computer Corporation" dmi_board_name="0RD318"
local_memory="16648183808">
<page_type size="4096" count="4064498"/>
<page_type size="2097152" count="0"/>
<object type="Socket" os_index="0" cpuset="0x00001111" ... >
<object type="Cache" cpuset="0x00001111" ...
cache_size="4194304" depth="3" cache_linesize="64">
<object type="Cache" cpuset="0x00000101" ...
cache_size="1048576" depth="2" cache_linesize="64">
<object type="Cache" cpuset="0x00000101" ...
cache_size="16384" depth="1" cache_linesize="64">
<object type="Core" os_index="0" ... >
<object type="PU" os_index="0" cpuset="0x00000001"
complete_cpuset="0x00000001" online_cpuset="0x00000001"
allowed_cpuset="0x00000001"/>
<object type="PU" os_index="8" cpuset="0x00000100"
complete_cpuset="0x00000100" online_cpuset="0x00000100"
allowed_cpuset="0x00000100"/>
</object>
</object>
</object>
<object type="Cache" cpuset="0x00001010" ...
cache_size="1048576" depth="2" cache_linesize="64">
<object type="Cache" cpuset="0x00001010"
cache_size="16384" depth="1" cache_linesize="64">
<object type="Core" os_index="1" cpuset="0x00001010" ... >
<object type="PU" os_index="4" cpuset="0x00000010"
complete_cpuset="0x00000010" online_cpuset="0x00000010"
allowed_cpuset="0x00000010"/>
<object type="PU" os_index="12" cpuset="0x00001000"
complete_cpuset="0x00001000" online_cpuset="0x00001000"
allowed_cpuset="0x00001000"/>
</object>
</object>
</object>
</object>
</object>
<!-- ...other sockets listed here ... -->
</object>
</topology>

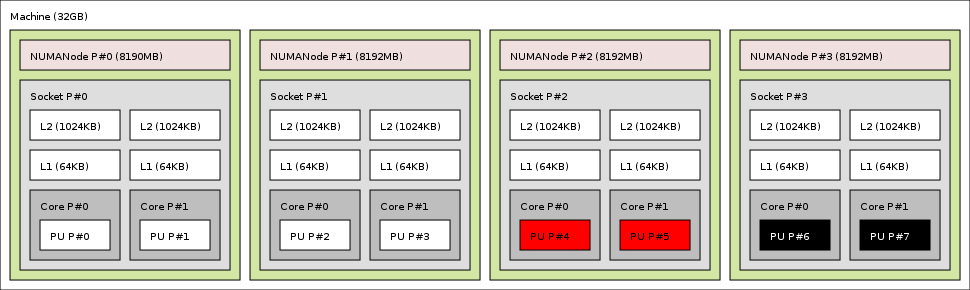

On a 4-socket 2-core Opteron NUMA machine, the lstopo tool may show the following graphical output:
Here's the equivalent output in textual form:
Machine (32GB)
NUMANode L#0 (P#0 8190MB) + Socket L#0
L2 L#0 (1024KB) + L1 L#0 (64KB) + Core L#0 + PU L#0 (P#0)
L2 L#1 (1024KB) + L1 L#1 (64KB) + Core L#1 + PU L#1 (P#1)
NUMANode L#1 (P#1 8192MB) + Socket L#1
L2 L#2 (1024KB) + L1 L#2 (64KB) + Core L#2 + PU L#2 (P#2)
L2 L#3 (1024KB) + L1 L#3 (64KB) + Core L#3 + PU L#3 (P#3)
NUMANode L#2 (P#2 8192MB) + Socket L#2
L2 L#4 (1024KB) + L1 L#4 (64KB) + Core L#4 + PU L#4 (P#4)
L2 L#5 (1024KB) + L1 L#5 (64KB) + Core L#5 + PU L#5 (P#5)
NUMANode L#3 (P#3 8192MB) + Socket L#3
L2 L#6 (1024KB) + L1 L#6 (64KB) + Core L#6 + PU L#6 (P#6)
L2 L#7 (1024KB) + L1 L#7 (64KB) + Core L#7 + PU L#7 (P#7)
And here's the equivalent output in XML. Similar to above, line breaks were added and only PU #0 is shown for brevity:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE topology SYSTEM "hwloc.dtd">
<topology>
<object type="Machine" os_index="0" cpuset="0x000000ff"
complete_cpuset="0x000000ff" online_cpuset="0x000000ff"
allowed_cpuset="0x000000ff" nodeset="0x000000ff"
complete_nodeset="0x000000ff" allowed_nodeset="0x000000ff"
dmi_board_vendor="TYAN Computer Corp" dmi_board_name="S4881 ">
<page_type size="4096" count="0"/>
<page_type size="2097152" count="0"/>
<object type="NUMANode" os_index="0" cpuset="0x00000003" ...
nodeset="0x00000001" ... local_memory="7514177536">
<page_type size="4096" count="1834516"/>
<page_type size="2097152" count="0"/>
<object type="Socket" os_index="0" cpuset="0x00000003" ... >
<object type="Cache" cpuset="0x00000001" ...
cache_size="1048576" depth="2" cache_linesize="64">
<object type="Cache" cpuset="0x00000001" ...
cache_size="65536" depth="1" cache_linesize="64">
<object type="Core" os_index="0" ... >
<object type="PU" os_index="0" cpuset="0x00000001"
complete_cpuset="0x00000001" online_cpuset="0x00000001"
allowed_cpuset="0x00000001" nodeset="0x00000001"
complete_nodeset="0x00000001" allowed_nodeset="0x00000001"/>
</object>
</object>
</object>
<!-- ...more objects listed here ... -->
</topology>

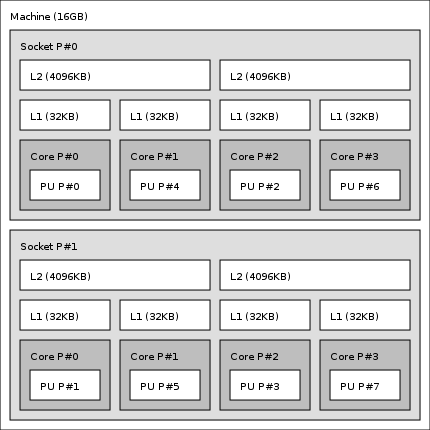

On a 2-socket quad-core Xeon (pre-Nehalem, with 2 dual-core dies into each socket):
Here's the same output in textual form:
Machine (16GB)
Socket L#0
L2 L#0 (4096KB)
L1 L#0 (32KB) + Core L#0 + PU L#0 (P#0)
L1 L#1 (32KB) + Core L#1 + PU L#1 (P#4)
L2 L#1 (4096KB)
L1 L#2 (32KB) + Core L#2 + PU L#2 (P#2)
L1 L#3 (32KB) + Core L#3 + PU L#3 (P#6)
Socket L#1
L2 L#2 (4096KB)
L1 L#4 (32KB) + Core L#4 + PU L#4 (P#1)
L1 L#5 (32KB) + Core L#5 + PU L#5 (P#5)
L2 L#3 (4096KB)
L1 L#6 (32KB) + Core L#6 + PU L#6 (P#3)
L1 L#7 (32KB) + Core L#7 + PU L#7 (P#7)
And the same output in XML (line breaks added, only PU #0 shown):
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE topology SYSTEM "hwloc.dtd">
<topology>
<object type="Machine" os_index="0" cpuset="0x000000ff"
complete_cpuset="0x000000ff" online_cpuset="0x000000ff"
allowed_cpuset="0x000000ff" dmi_board_vendor="Dell Inc."
dmi_board_name="0NR282" local_memory="16865292288">
<page_type size="4096" count="4117503"/>
<page_type size="2097152" count="0"/>
<object type="Socket" os_index="0" cpuset="0x00000055" ... >
<object type="Cache" cpuset="0x00000011" ...
cache_size="4194304" depth="2" cache_linesize="64">
<object type="Cache" cpuset="0x00000001" ...
cache_size="32768" depth="1" cache_linesize="64">
<object type="Core" os_index="0" ... >
<object type="PU" os_index="0" cpuset="0x00000001"
complete_cpuset="0x00000001" online_cpuset="0x00000001"
allowed_cpuset="0x00000001"/>
</object>
</object>
<object type="Cache" cpuset="0x00000010" ...
cache_size="32768" depth="1" cache_linesize="64">
<object type="Core" os_index="1" ... >
<object type="PU" os_index="4" cpuset="0x00000010" ...
complete_cpuset="0x00000010" online_cpuset="0x00000010"
allowed_cpuset="0x00000010"/>
</object>
</object>
</object>
<!-- ...more objects listed here ... -->
</topology>
Programming Interface
The basic interface is available in hwloc.h. Some higher-level functions are available in hwloc/helper.h to reduce the need to manually manipulate objects and follow links between them. Documentation for all these is provided later in this document. Developers may also want to look at hwloc/inlines.h which contains the actual inline code of some hwloc.h routines, and at this document, which provides good higher-level topology traversal examples.
To precisely define the vocabulary used by hwloc, a Terms and Definitions section is available and should probably be read first.
Each hwloc object contains a cpuset describing the list of processing units that it contains. These bitmaps may be used for CPU binding and Memory binding. hwloc offers an extensive bitmap manipulation interface in hwloc/bitmap.h.
Moreover, hwloc also comes with additional helpers for interoperability with several commonly used environments. See the Interoperability With Other Software section for details.
The complete API documentation is available in a full set of HTML pages, man pages, and self-contained PDF files (formatted for both both US letter and A4 formats) in the source tarball in doc/doxygen-doc/.
NOTE: If you are building the documentation from a Git clone, you will need to have Doxygen and pdflatex installed – the documentation will be built during the normal "make" process. The documentation is installed during "make install" to $prefix/share/doc/hwloc/ and your systems default man page tree (under $prefix, of course).
Portability
As shown in CLI Examples, hwloc can obtain information on a wide variety of hardware topologies. However, some platforms and/or operating system versions will only report a subset of this information. For example, on an PPC64-based system with 32 cores (each with 2 hardware threads) running a default 2.6.18-based kernel from RHEL 5.4, hwloc is only able to glean information about NUMA nodes and processor units (PUs). No information about caches, sockets, or cores is available.
Similarly, Operating System have varying support for CPU and memory binding, e.g. while some Operating Systems provide interfaces for all kinds of CPU and memory bindings, some others provide only interfaces for a limited number of kinds of CPU and memory binding, and some do not provide any binding interface at all. Hwloc's binding functions would then simply return the ENOSYS error (Function not implemented), meaning that the underlying Operating System does not provide any interface for them. CPU binding and Memory binding provide more information on which hwloc binding functions should be preferred because interfaces for them are usually available on the supported Operating Systems.

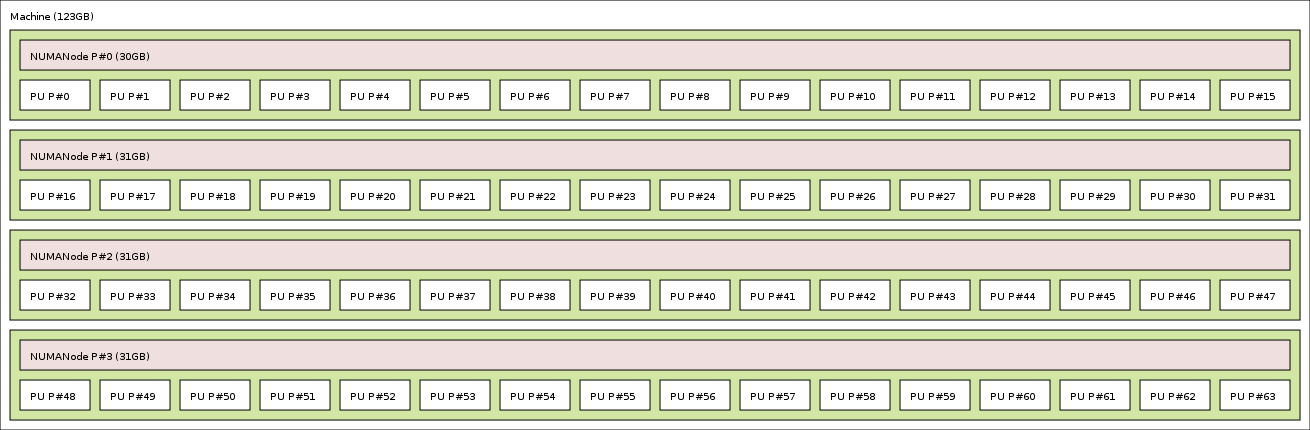

Here's the graphical output from lstopo on this platform when Simultaneous Multi-Threading (SMT) is enabled:

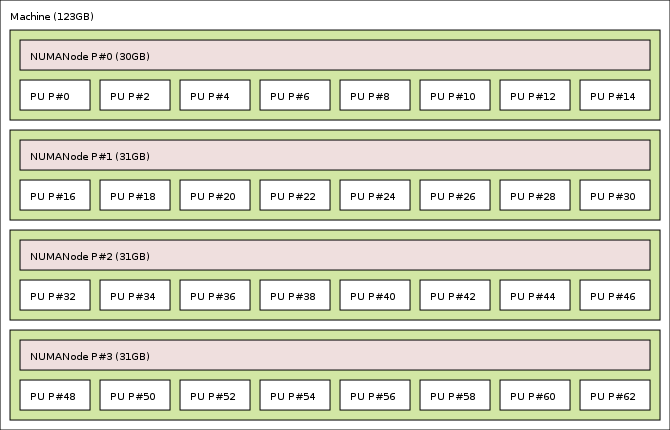

And here's the graphical output from lstopo on this platform when SMT is disabled:
Notice that hwloc only sees half the PUs when SMT is disabled. PU #15, for example, seems to change location from NUMA node #0 to #1. In reality, no PUs "moved" – they were simply re-numbered when hwloc only saw half as many. Hence, PU #15 in the SMT-disabled picture probably corresponds to PU #30 in the SMT-enabled picture.
This same "PUs have disappeared" effect can be seen on other platforms – even platforms / OSs that provide much more information than the above PPC64 system. This is an unfortunate side-effect of how operating systems report information to hwloc.

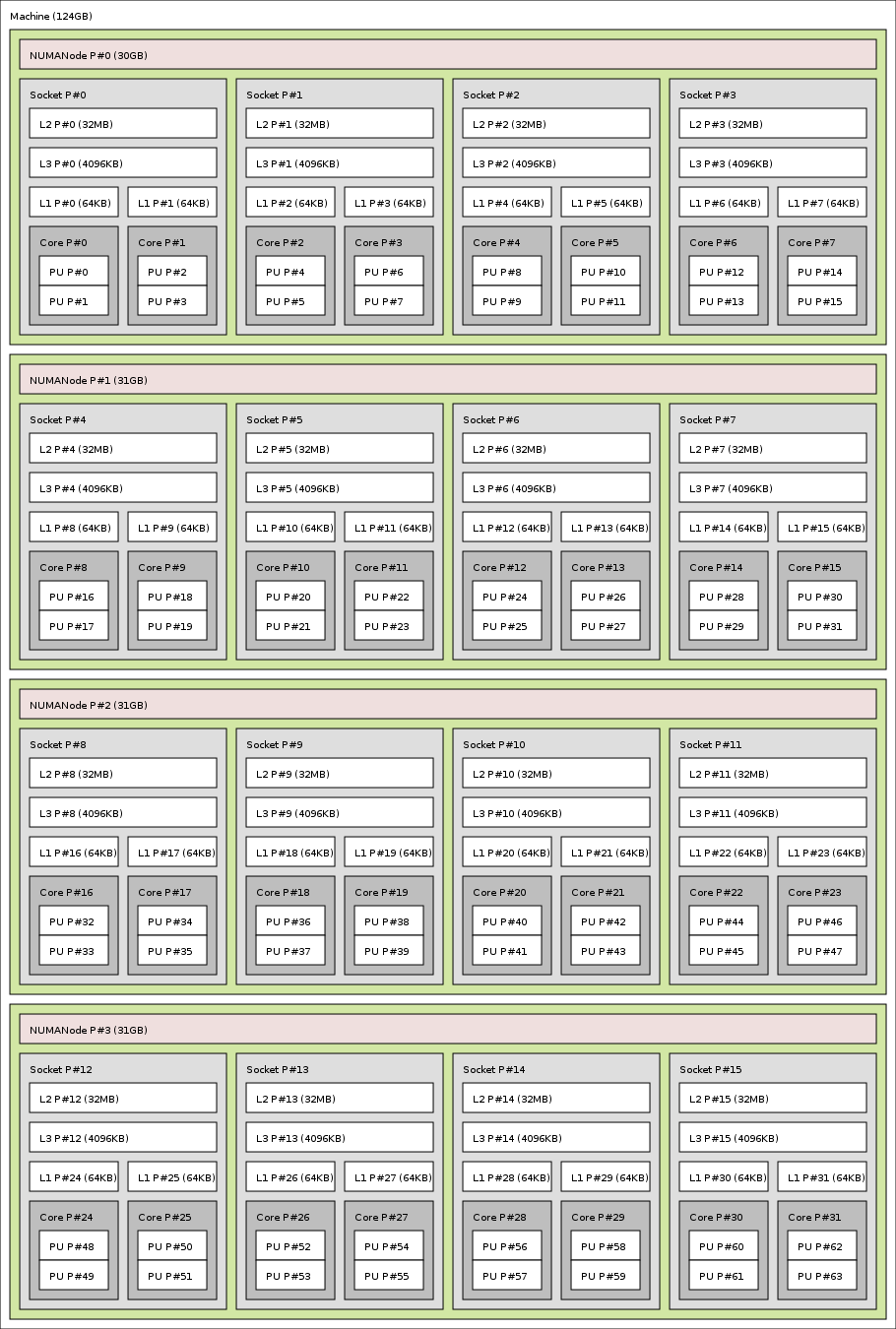

Note that upgrading the Linux kernel on the same PPC64 system mentioned above to 2.6.34, hwloc is able to discover all the topology information. The following picture shows the entire topology layout when SMT is enabled:
Developers using the hwloc API or XML output for portable applications should therefore be extremely careful to not make any assumptions about the structure of data that is returned. For example, per the above reported PPC topology, it is not safe to assume that PUs will always be descendants of cores.
Additionally, future hardware may insert new topology elements that are not available in this version of hwloc. Long-lived applications that are meant to span multiple different hardware platforms should also be careful about making structure assumptions. For example, there may someday be an element "lower" than a PU, or perhaps a new element may exist between a core and a PU.
API Example
The following small C example (named ``hwloc-hello.c'') prints the topology of the machine and bring the process to the first logical processor of the second core of the machine. More examples are available in the doc/examples/ directory of the source tree.
#include <hwloc.h>
#include <errno.h>
#include <stdio.h>
#include <string.h>
{
char string[128];
unsigned i;
hwloc_obj_snprintf(string, sizeof(string), topology, obj, "#", 0);
printf("%*s%s\n", 2*depth, "", string);
for (i = 0; i < obj->
arity; i++) {
print_children(topology, obj->
children[i], depth + 1);
}
}
int main(void)
{
unsigned i, n;
unsigned long size;
int levels;
char string[128];
int topodepth;
for (depth = 0; depth < topodepth; depth++) {
printf("*** Objects at level %d\n", depth);
i++) {
hwloc_obj_snprintf(string, sizeof(string), topology,
"#", 0);
printf("Index %u: %s\n", i, string);
}
}
printf("*** Printing overall tree\n");
printf("*** The number of sockets is unknown\n");
} else {
printf("*** %u socket(s)\n",
}
levels = 0;
size = 0;
obj;
levels++;
}
printf("*** Logical processor 0 has %d caches totaling %luKB\n",
levels, size / 1024);
if (obj) {
char *str;
int error = errno;
printf("Couldn't bind to cpuset %s: %s\n", str, strerror(error));
free(str);
}
}
if (n) {
void *m;
size = 1024*1024;
m = malloc(size);
free(m);
}
return 0;
}
hwloc provides a pkg-config executable to obtain relevant compiler and linker flags. For example, it can be used thusly to compile applications that utilize the hwloc library (assuming GNU Make):
CFLAGS += $(pkg-config --cflags hwloc)
LDLIBS += $(pkg-config --libs hwloc)
cc hwloc-hello.c $(CFLAGS) -o hwloc-hello $(LDLIBS)
On a machine with 4GB of RAM and 2 processor sockets – each socket of which has two processing cores – the output from running hwloc-hello could be something like the following:
shell$ ./hwloc-hello
*** Objects at level 0
Index 0: Machine(3938MB)
*** Objects at level 1
Index 0: Socket#0
Index 1: Socket#1
*** Objects at level 2
Index 0: Core#0
Index 1: Core#1
Index 2: Core#3
Index 3: Core#2
*** Objects at level 3
Index 0: PU#0
Index 1: PU#1
Index 2: PU#2
Index 3: PU#3
*** Printing overall tree
Machine(3938MB)
Socket#0
Core#0
PU#0
Core#1
PU#1
Socket#1
Core#3
PU#2
Core#2
PU#3
*** 2 socket(s)
shell$
Questions and Bugs
Questions should be sent to the devel mailing list (https://www.open-mpi.org/community/lists/hwloc.php). Bug reports should be reported in the tracker (https://github.com/open-mpi/hwloc/issues).
If hwloc discovers an incorrect topology for your machine, the very first thing you should check is to ensure that you have the most recent updates installed for your operating system. Indeed, most of hwloc topology discovery relies on hardware information retrieved through the operation system (e.g., via the /sys virtual filesystem of the Linux kernel). If upgrading your OS or Linux kernel does not solve your problem, you may also want to ensure that you are running the most recent version of the BIOS for your machine.
If those things fail, contact us on the mailing list for additional help. Please attach the output of lstopo after having given the –enable-debug option to ./configure and rebuilt completely, to get debugging output. Also attach the /proc + /sys tarball generated by the installed script hwloc-gather-topology when submitting problems about Linux, or send the output of kstat cpu_info in the Solaris case, or the output of sysctl hw in the Darwin or BSD cases.
Further Reading
The documentation chapters include
Make sure to have had a look at those too!
